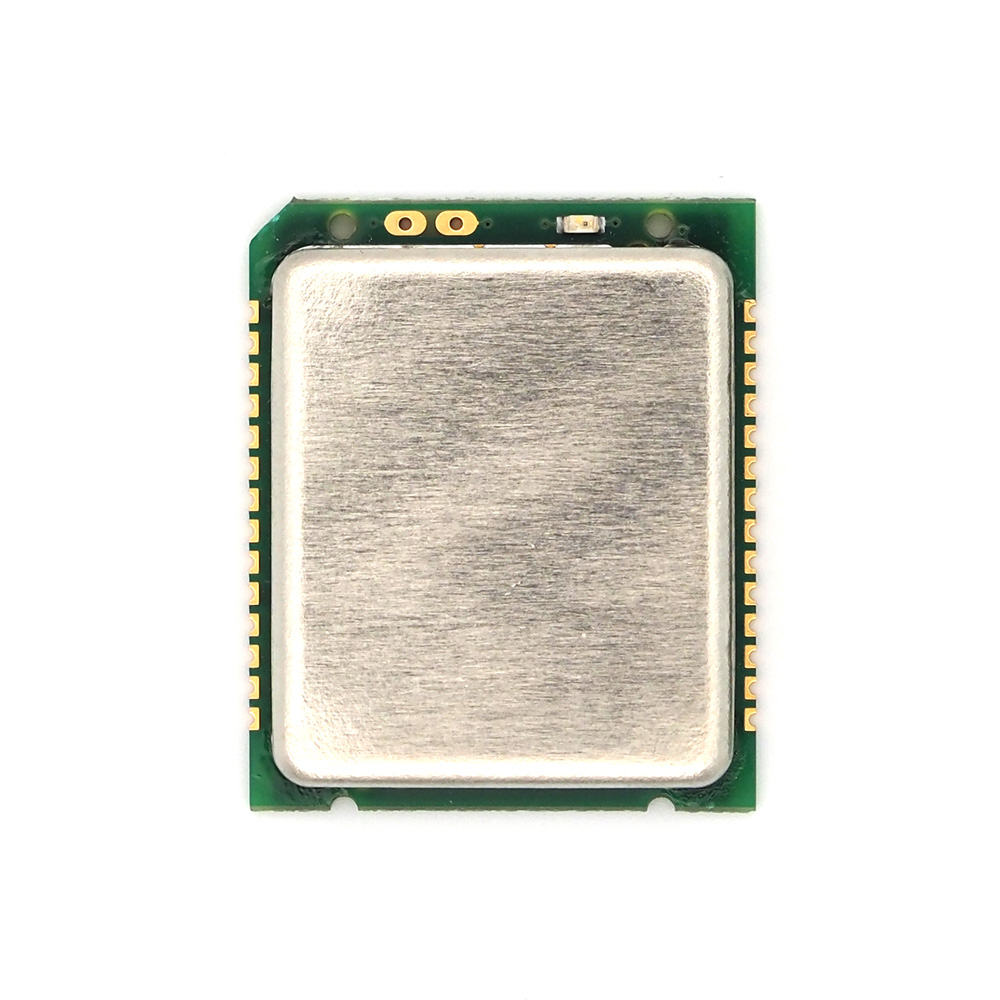

VTAP25 embedded NFC reader module – USB & Serial
Universal, compact embedded surface mount NFC reader module that supports a wide range of cards, tags and mobile credentials including Apple Wallet, Google Wallet and all MIFARE, DESFire and NFC tag types. Certified for Apple ECP2 access control and Google Smart Tap, certification in progress for Apple VAS. Requires you to supply a matched external antenna and tuning circuit. Multiple host interfaces including USB and serial UART, SPI and I2C interfaces via castellated SMD pinout.
£89.00
Key features
| Interfaces | USB and serial (primary UART, secondary UART, SPI slave, I2C slave) |
|---|---|
| Power | 3.3V or 5V DC |
| Cable included | No |
| Dimensions | 24mm x 29.3mm x 5.9mm (0.95in x 1.15in x 0.23in) |
Description
Universal contactless NFC reader module for quick integration and easy certification in any mobile wallet scenario where a small form-factor and/or custom antenna is required. USB and multiple serial host interfaces, with secure embedded management and firmware update capabilities.
- Supports a wide range of cards, tags and secure NFC credentials, including Apple Wallet, Google Wallet, MIFARE® and NFC tag types.
- Certified for Apple ECP2 access control and Google Smart Tap, certification in progress for Apple VAS - modules also generally require certification in final enclosure
- 5V or 3.3V supply with on-board power management, USB VBUS detection and low power mode for use with battery-powered devices
- USB and serial UART, SPI and I2C interfaces via castellated SMD pinout. Developer/evaluation kit available Q3 2025.
- MIFARE & NFC tag support including UID, MIFARE sector, secure DESFire, Ultralight AES, NDEF, HCE and MIFARE2Go
- Support for up to 255 external serial RGB LEDs including animation
- Configuration, keys and firmware updates managed locally over USB or serial
- Powerful real and virtual COM interface with multiple protocols including secure OSDP over serial, SPI and I2C
- Secure on-board decryption of many pass types and storage of multiple ECC and AES keys
- Additional NFC tag emulation and GymKit handoff modes
- On board EAL6+ secure element (SE050) plus other additional I/O pins and features available
Downloads
VTAP25-MOD Datasheet
Datasheet for VTAP25-MOD embedded NFC reader module from Dot Origin.
